Standard Interior Cleaning Brush
Interior Tube Cleaning Brushes Spiral Brushes to clean and remove burrs from internal holes of small parts or parts that are difficult to access. With a wire body that when twisted spirally holds the filament in the form of a helix.
Cleans interiors of bottles, tube cleaners, exchanger tubes, boiler tubes, stoves, wood and pellet ovens, refrigeration and condenser tubes.
You can choose the filaments in different materials; steel, brass-plated, stainless steel, brass, abrasive fiber (silicon carbide) and synthetic fibers such as nylon, polyamide or polypropylene and natural.
They can be rigid or flexible. They facilitate access and cleaning of all types of tubes. Standard models and custom manufacturing.
Its use can be manual as well as coupled to portable or fixed machines. They can have a coupling thread.
These brushes are perfect for removing debris inside tubes and holes, washer holes, bottles, radiators or laboratory tools. They remove salts, oxides, residues, adhesions, clean threaded holes, boilers and radiators, machined parts, molds, and other applications.
Interior Brushes for Spiral Tubes Brushes
Threadless Pipe Brushes
Nylon – Polyamide Synthetic Fiber
Standardized models:
Ø from 3.3 to 100mm
Useful length from 100 to 20mm
Total length from 300 to 540mm
Nylon diameter from 0.10 to 0.60mm
Minimum sale quantity 10 units.
Other measures on request
Other models for specific applications:
Interior Cleaning Brush with fibers at the tip for cleaning the interiors of bottles.

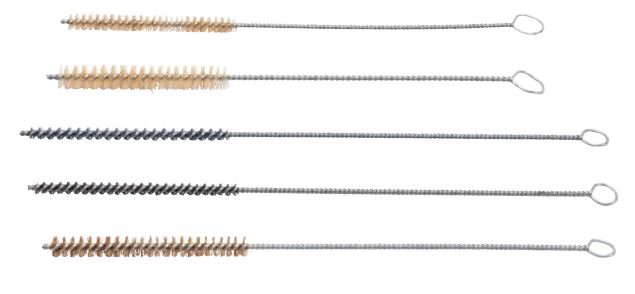

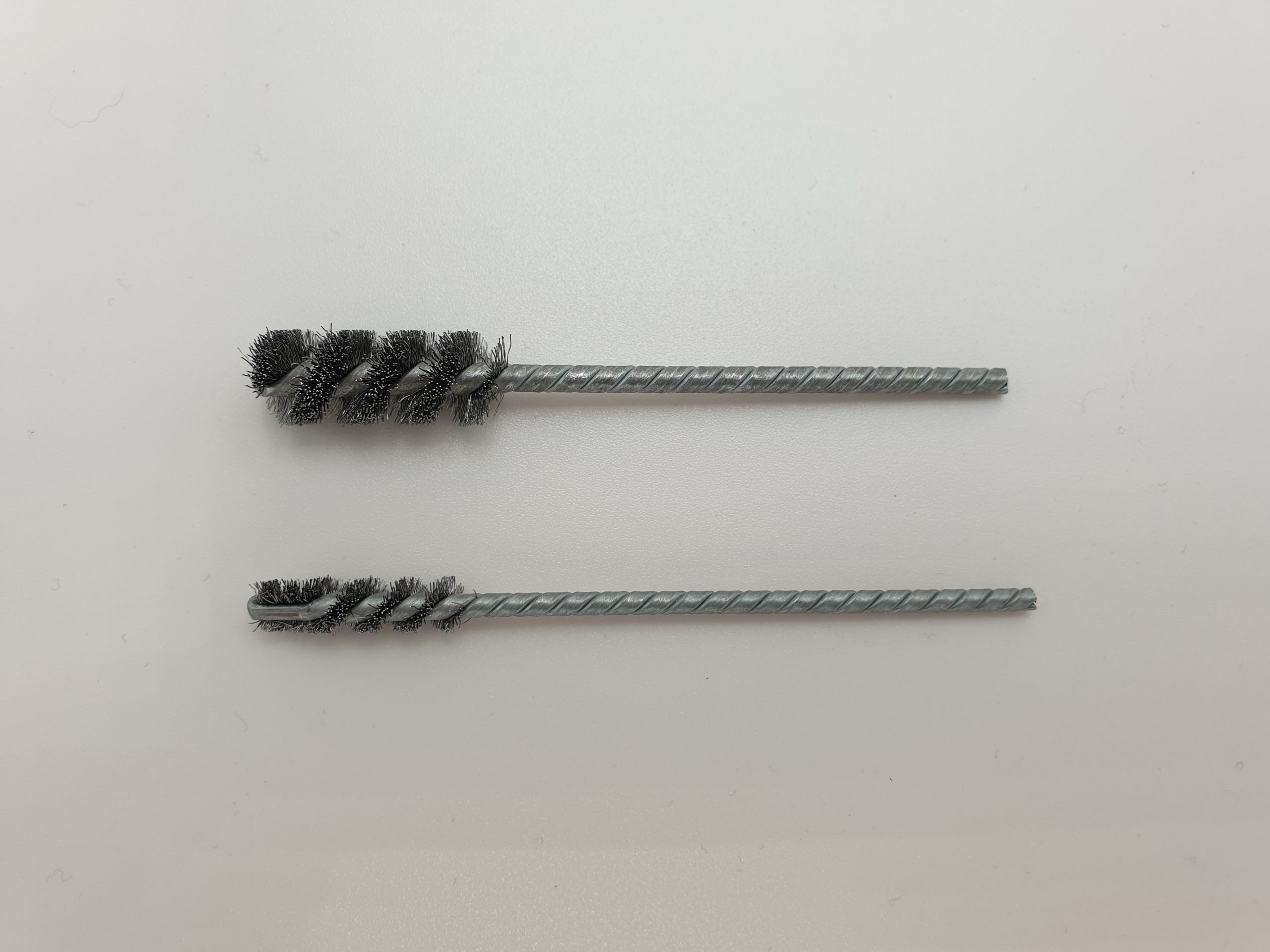

Interior Cleaning Brush Metallic Fiber – Steel – Stainless Steel – Brass
Standardized tube cleaner models:
Fiber steel
Ø from 3 to 25mm
Useful length from 70 to 100mm
Total length from 300 to 420mm
Minimum sale quantity 10 units.
Stainless steel fiber
Ø from 6 to 8mm
Useful length from 80 to 100mm
overall length 300mm
Minimum sale quantity 10 units.
Brass
Ø from 6 to 15mm
Useful length from 80 to 100mm
overall length 300mm
Minimum sale quantity 10 units.
Other measures on request

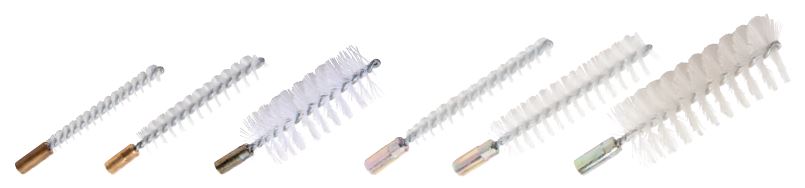

Threaded Pipe Brushes
Nylon – Polyamide Synthetic Fiber
Standardized models:
Female Thread M3 – Ø 5 – 6 – 7mm
Female Thread M6 – Ø 8 – 9 – 10 – 11 – 12 – 14 – 16 – 17 – 18 – 20 – 21 – 22 – 25 -30mm
Minimum sale quantity 12 units.
Other measures on request
Metallic Fiber Steel and Stainless Steel
Standardized models:
Female Thread M3 – Ø 5 – 6 – 7mm
Female Thread M6 – Ø 8 – 9 – 10 – 11 – 12 – 14 – 16 – 17 – 18 – 20 – 21 – 22 – 25 -30mm
Minimum sale quantity 12 units.
Other measures on request

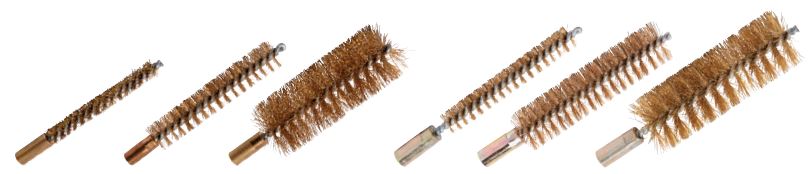

Brass Metallic Fiber
Standardized models:
Female Thread M3 – Ø 5 – 6 – 7mm
Female Thread M6 – Ø 8 – 9 – 10 – 11 – 12 – 14 – 16 – 17 – 18 – 20 – 21 – 22 – 25 -30mm
Minimum sale quantity 12 units.
Other measures on request

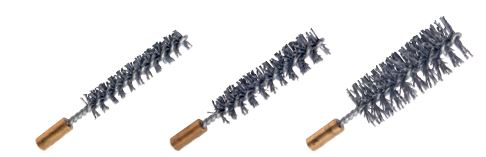

Abrasive Nylon Fiber G-320
Standardized models:
Female Thread M3 – Ø 5 – 6 – 7mm
Female Thread M6 – Ø 8 – 10 – 12 – 14 – 16 – 20 – 25mm
Minimum sale quantity 12 units.
Other measures on request

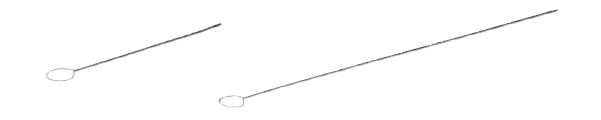

Flexible Rods
Ø 5 Length 400mm Male thread M6x100mm
Ø 5 Length 800mm Male thread M6x100mm
Threaded Tube Cleaning Brushes
Steel Fiber
Standardized models:
Female Thread M12x175
Ø 25 – 80 (from 5 to 5mm)
Female Thread M12x175
Ø 90 – 100 – 110 – 120 – 140mm
Overall Length 180mm
Minimum sale quantity 12 units.
Other measures on request

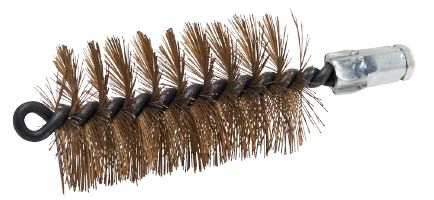

Brass Fiber
Standardized models:
Female Thread M12x175
Ø 25 – 80 (from 5 to 5mm)
Overall Length 180mm
Minimum sale quantity 12 units.
Other measures on request

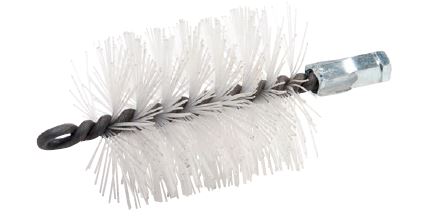

Fiber Nylon – Polyamide
Standardized models:
Female Thread M12x175
Ø 25 – 80 (from 5 to 5mm)
Female Thread M12x175
Ø 90 – 100 – 110 – 120 – 140mm
Overall Length 180mm
Minimum sale quantity 12 units.
Other measures on request

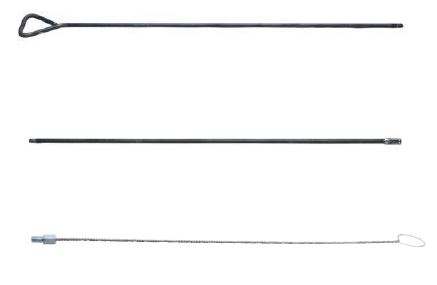

Rods
Rigid rod steel with ring Ø 12 Length 1.000mm M12 male thread
Extension Rigid steel Ø 12 Length 1.000mm M12 male thread
Flexible rod Ø 12 Length 1.000mm M12 male thread
Interior Cleaning Brush with Abrasive Balls
Abrasive ball brushes are elastic and flexible brushing tools. At the tips of the bristles they carry abrasive balls. This special construction allows the tool to deburr cross-holes and also improve adhesion of lubricants. Available in diameters from 4 to 76mm.Watch video.
Ideal for cleaning and deburring air compressors, hydraulic and pneumatic cylinders, brake cylinders, engines, boilers… It is used in rotation and at low rpm.
Brush for Flat Steel Boilers
Brushes clean inside boiler tubes with flat steel. 27x27mm squares + thread and rectangular 35×85, 50×100 and 23x50mm + thread. Flexible cable 7 meters long + thread available.
Hedgehog for Pellet Stove
Hedgehog with ring and thread 12x175H
Pellet stove kit – Cane
Flexible 3 meters + Hedgehog
Flexible rod 3 meters long Diameter 4.5mm + M12
Extension for Pellet Kit 3 meters long + M12
Hedgehogs and Chimney Sweep Kits
chimney sweep; Hedgehogs, rods, kits and cleaning accessories for professional and private chimney sweeping.
Hedgehog Round Flat Steel
Round flat steel urchin with 12×175 female coupling thread with ring, ball or double ring.
Diameter 100 – 125- 150 and 180mm flat steel 1.8×0.45mm
Diameter 200 – 250 – 300 – 350mm flat steel 3×0.40mm
Diameter 450 and 500mm flat steel 5×0.50mm
Rectangular Flat Steel Urchin
Rectangular flat steel hedgehog with 12×175 female coupling thread with ring, ball or double ring.
200×400 – 150×200 – 200×350 – 250×400 and 300x400mm flat steel 3×0.40mm
300×450 and 400x600mm flat steel 5×0.50mm
Hedgehog Square Flat Steel
Square flat steel hedgehog with 12×175 female coupling thread with ring, ball or double ring.
150x150mm flat steel 1.8×0.45mm
200×200 – 250×250 – 300×300 – 350×350 and 400x400mm flat steel 3×0.40mm
450×450 and 500x500mm flat steel 5×0.50mm

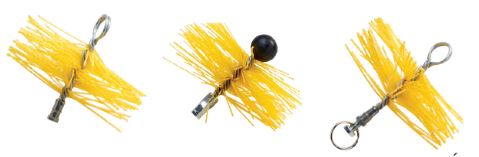

Synthetic Fiber Round Hedgehog
Round synthetic fiber hedgehog with 12×175 female coupling thread with ring, ball or double ring. Ideal for stainless steel tubes.
Diameter 80 – 100 – 125- 150 – 180 – 200 – 250 – 300 and 350mm
Chimney Sweep Kit 9 meters
9 meter chimney sweep kit:
4 rods Length 2 meters each. (diameter 18 or 20mm)
1 rod Length 1 meter (diameter 18 or 20mm) + 1 hedgehog to choose.
