Threaded Pipe Cleaner

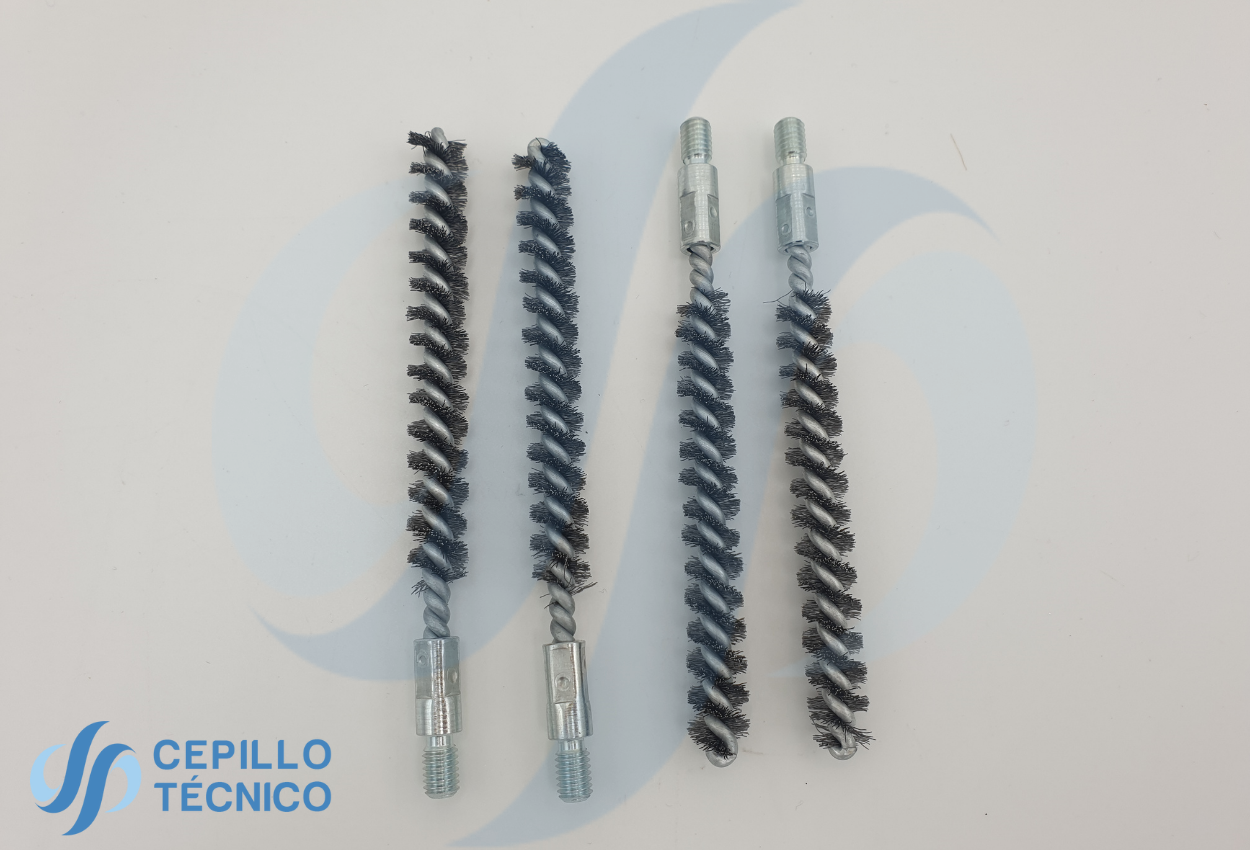

Industrial Threaded Tube Cleaning Brush

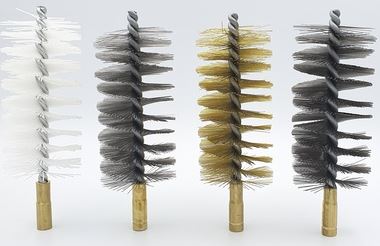

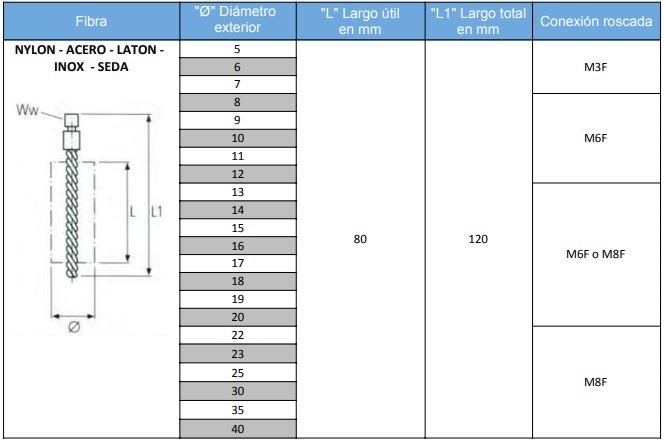

Diameter from Ø 5 mm to Ø 40 mm and 5 different fiber materials: nylon, steel, brass, stainless steel and silk

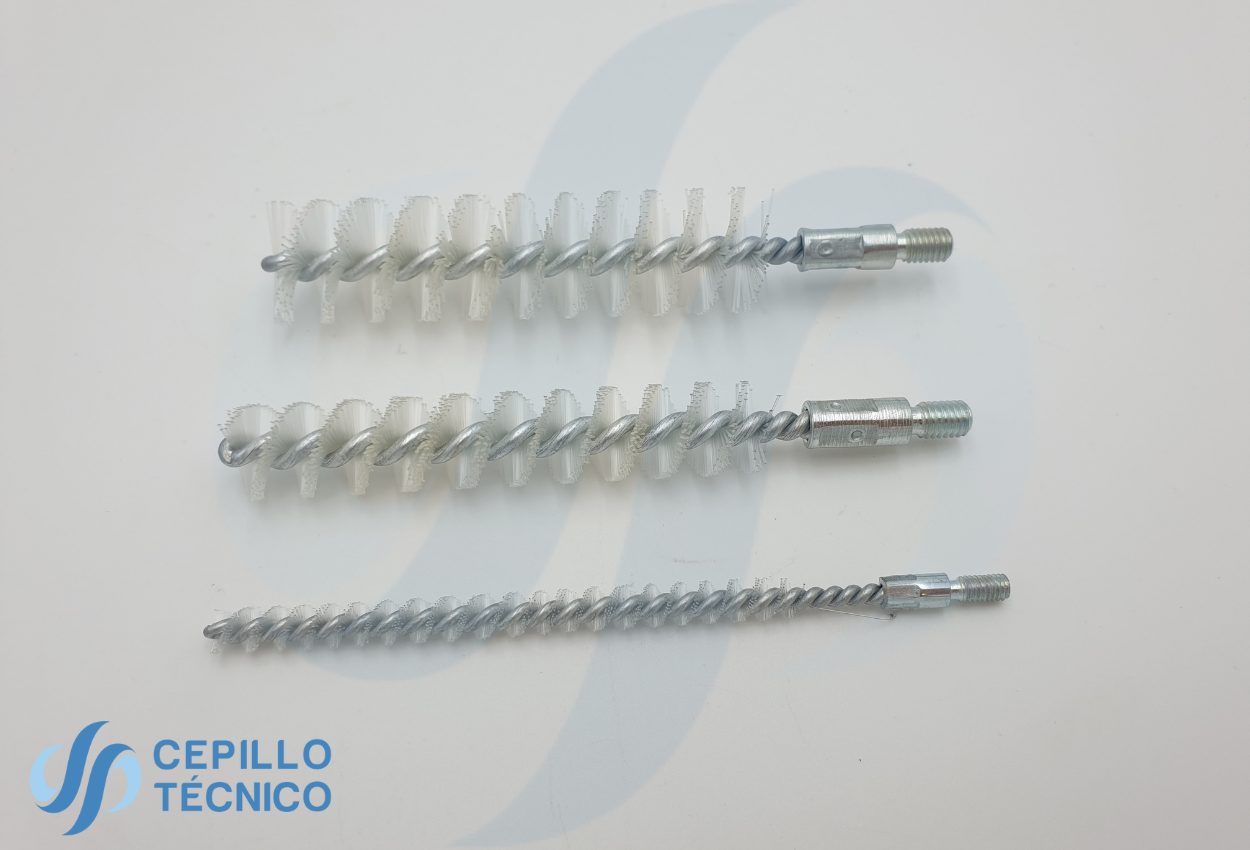

Industrial interior cleaning brushes covered with metallic, synthetic or natural fibers, consisting of a galvanized steel twist and a threaded brass fitting at one end.
Brushes designed toclean, dust, smooth, deburr, remove rust in hard-to-reach areas and interior surfaces (tubes). They are used in industry, general mechanics.
Minimum sale quantity 12 units.
Other measures on request
Male thread also available

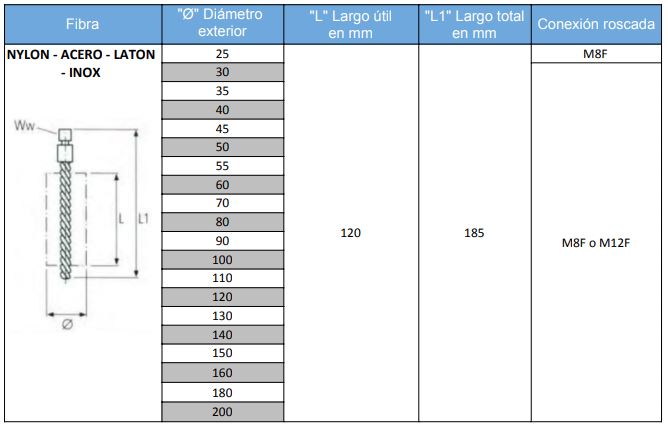

Diameter from Ø 25 mm to Ø 200 mm and 4 different fiber materials: nylon, steel, brass and stainless steel

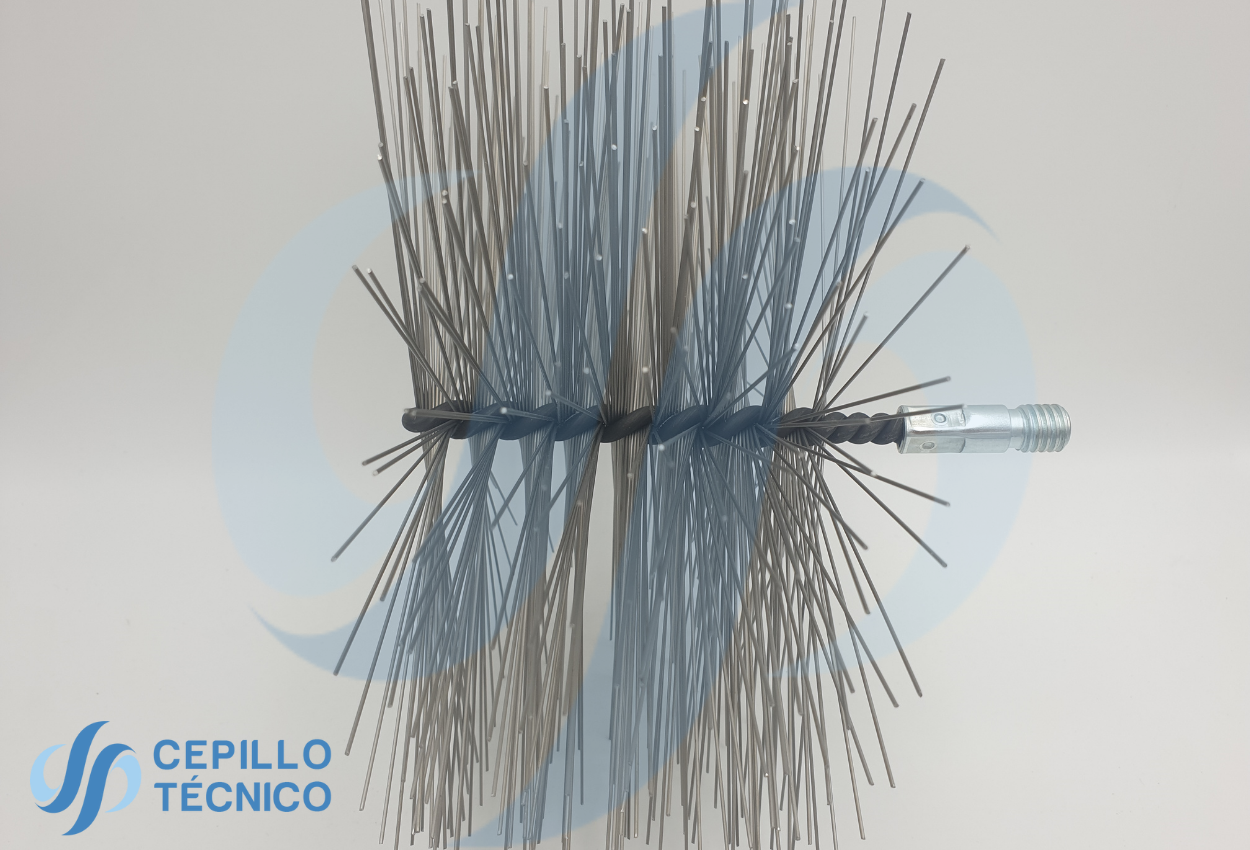

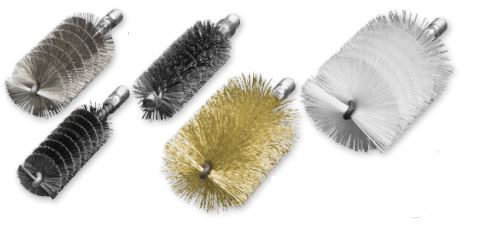

Industrial interior cleaning brushes coated with steel, brass, stainless steel and nylon fibers. They consist of a galvanized steel swivel and a steel fitting at one end.
The superior internal cleaning brushes are intended for cleaning internal tubes, removing deposits on the walls (incrustations, limescale, superficial oxidation, etc.) and deburring.
Minimum sale quantity 12 units.
Other measures on request
Male thread also available
These brushes are used for many different purposes – not just cleaning tubes, screens, sleeves and cylinders. The internal brushes regulate the speed of the current in the piping systems. They are similar to double spiral tube brushes for deburring cross bores etc.
Mechanical application
Use the brush only with the maximum recommended peripheral speed (max RPM). The maximum RPM are only allowed when the brush is clamped min. by 10 mm on the tool. When the planer is inserted into the proper work piece, higher RPMs are possible. Only use the brush turning to the right.
Double spiral brushes (on request)
Double spiral brushes are mainly used for the treatment of larger diameters or for the treatment of hard materials. A double spiral is more stable and has a higher resistance to unwinding. Therefore, the brushes can be exposed to higher loads.

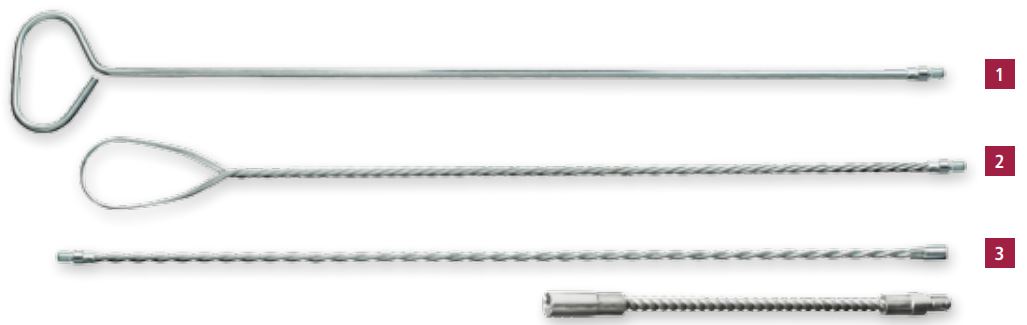

Extension Rods and Accessories
Handle with Ring
1.- Round steel handle, straight Length 400, 800 and 1,000mm M10 male thread Packs of 1 unit.
2.- Twisted wire handle
Length 1,000mm Female Thread M4, M6 and M10
Length 1.000mm Male Thread M12
Length 500 and 1,000mm Female Thread W 1/2″
Packs of 1 unit.
3.- Braided wire extensions
Length 1.000mm Female Thread/mCh M4, M6, M10 and M12
Length 200mm Female/Male Thread M6
Length 500 and 1,000mm Female/Male Thread W 1/2″
Packs of 1 unit.

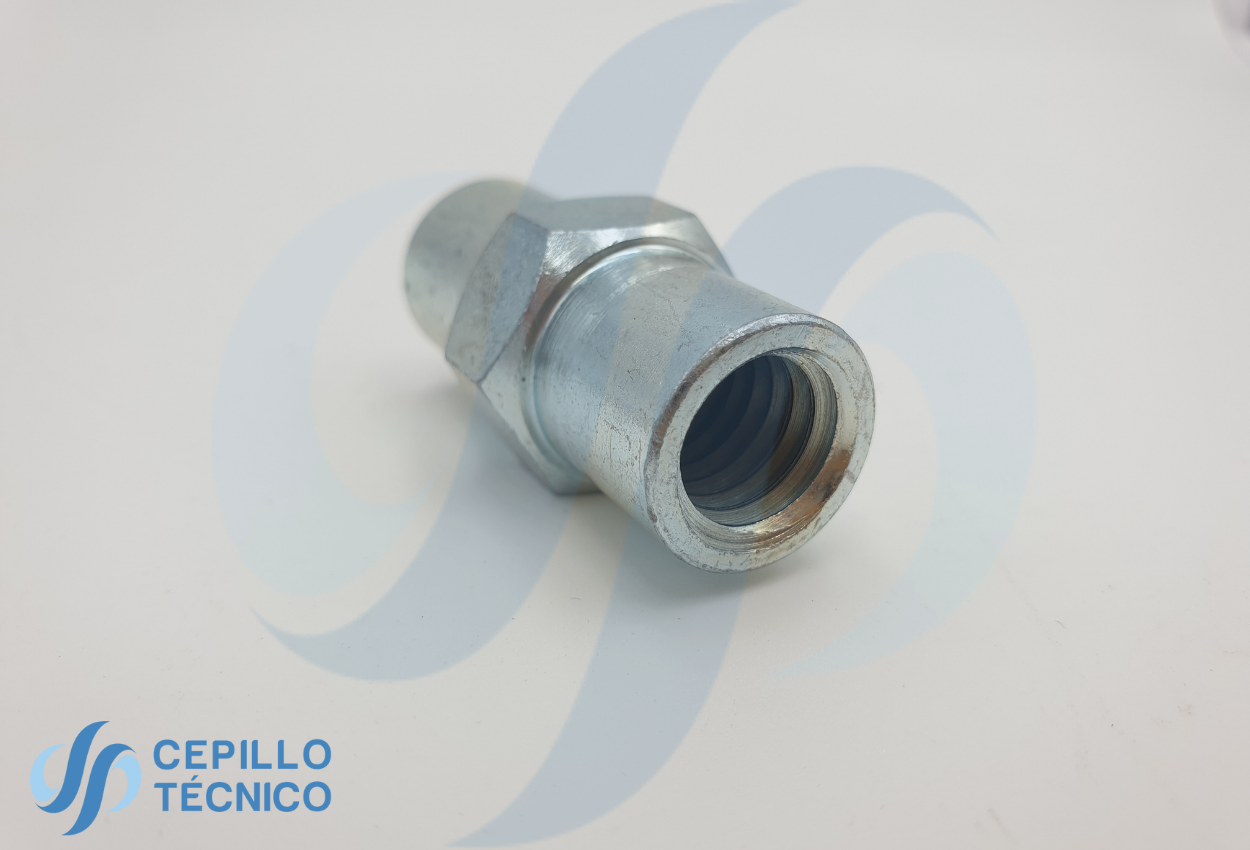

Adapter threads

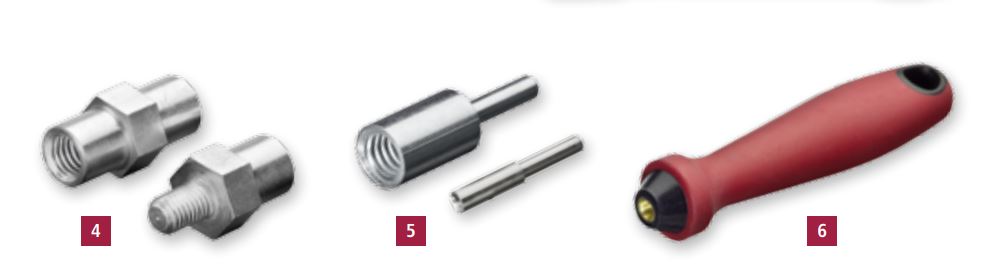

4.- Female Adapter W 1/2″ Female M12
Female Adapter W 1/2″ Female M10
Female Adapter W 3/8″ Female M12
M10 Female W 1/2″ Male Adapter
M10 Female W 3/8″ Male Adapter
Packs of 1 unit.
5.- Female Adapter W 1/2″ Handle Ø 6 mm Lg 50mm
M6 Female Adapter Handle Ø 6 mm Lg 50mm
Packs of 1 unit.
6.- W 1/2″ Female Adapter
M6 Female Adapter
Packs de 1 ud.
